Sigma Folding Partition Walls

For added flexibility, or when there is no suitable structure to suspend from, the Sigma can be supplied with a low profile floor track.

Introduction

The Sigma Range is a continuously hidden hinged system offering a mid level acoustic performance.

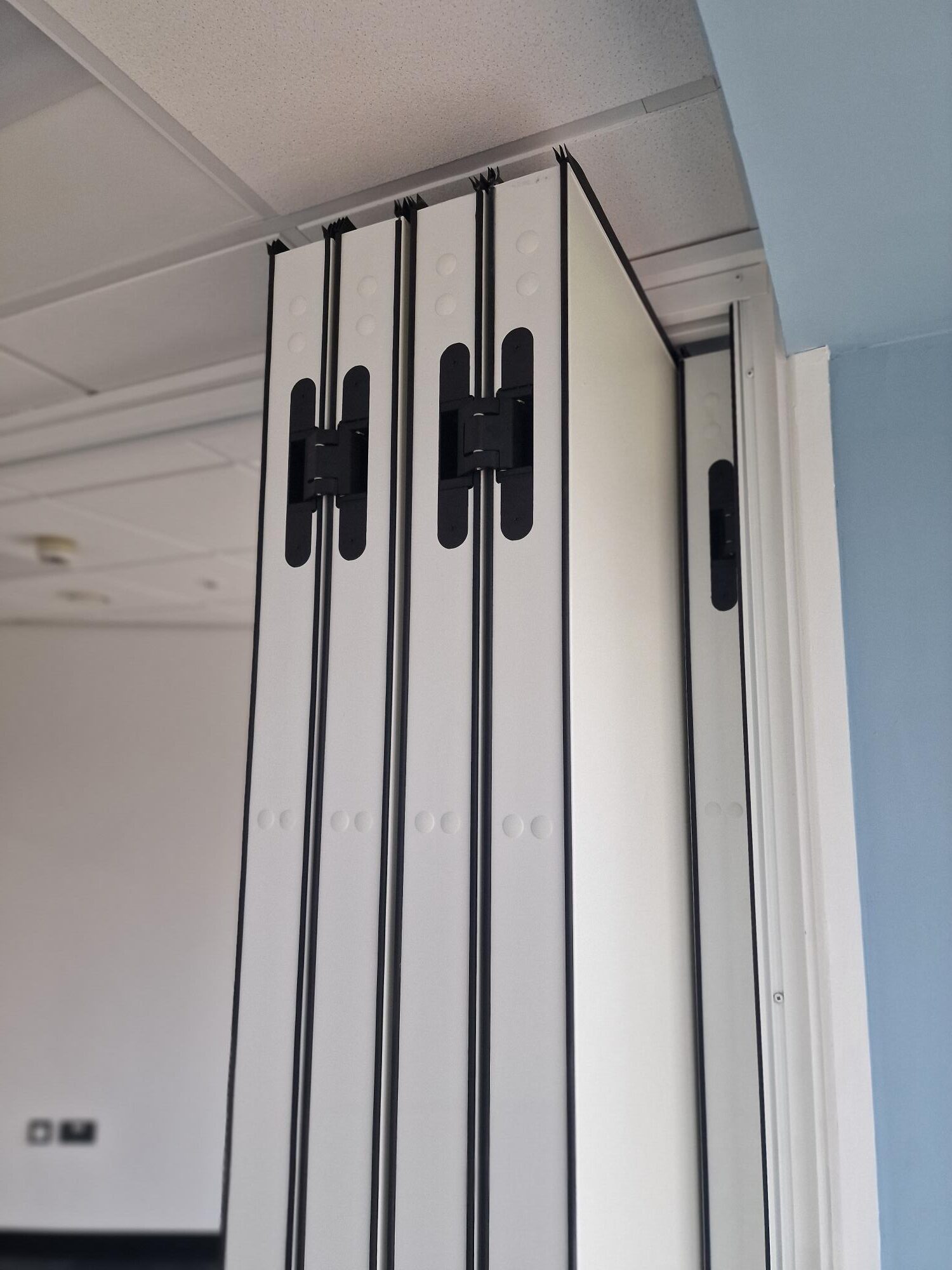

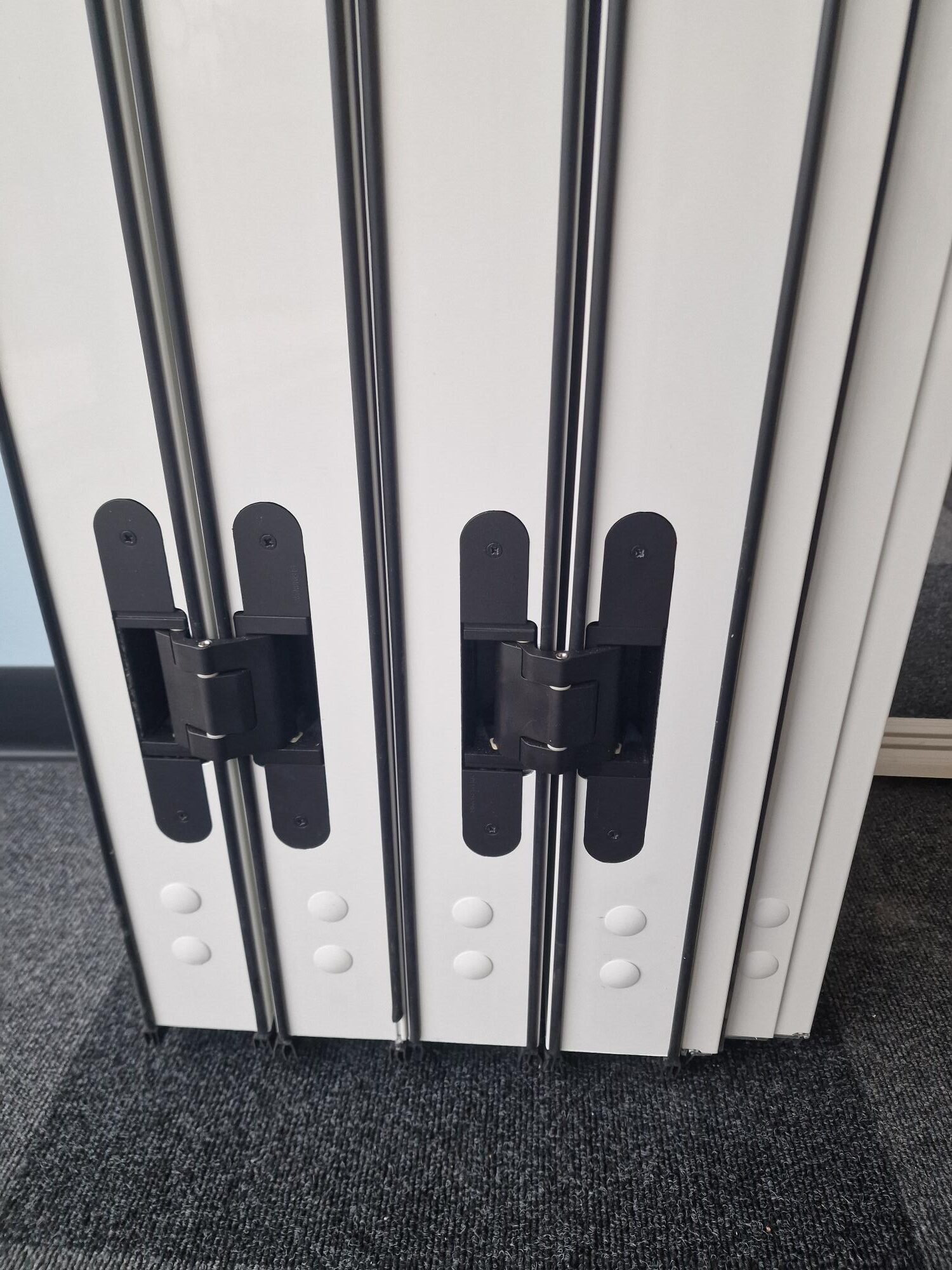

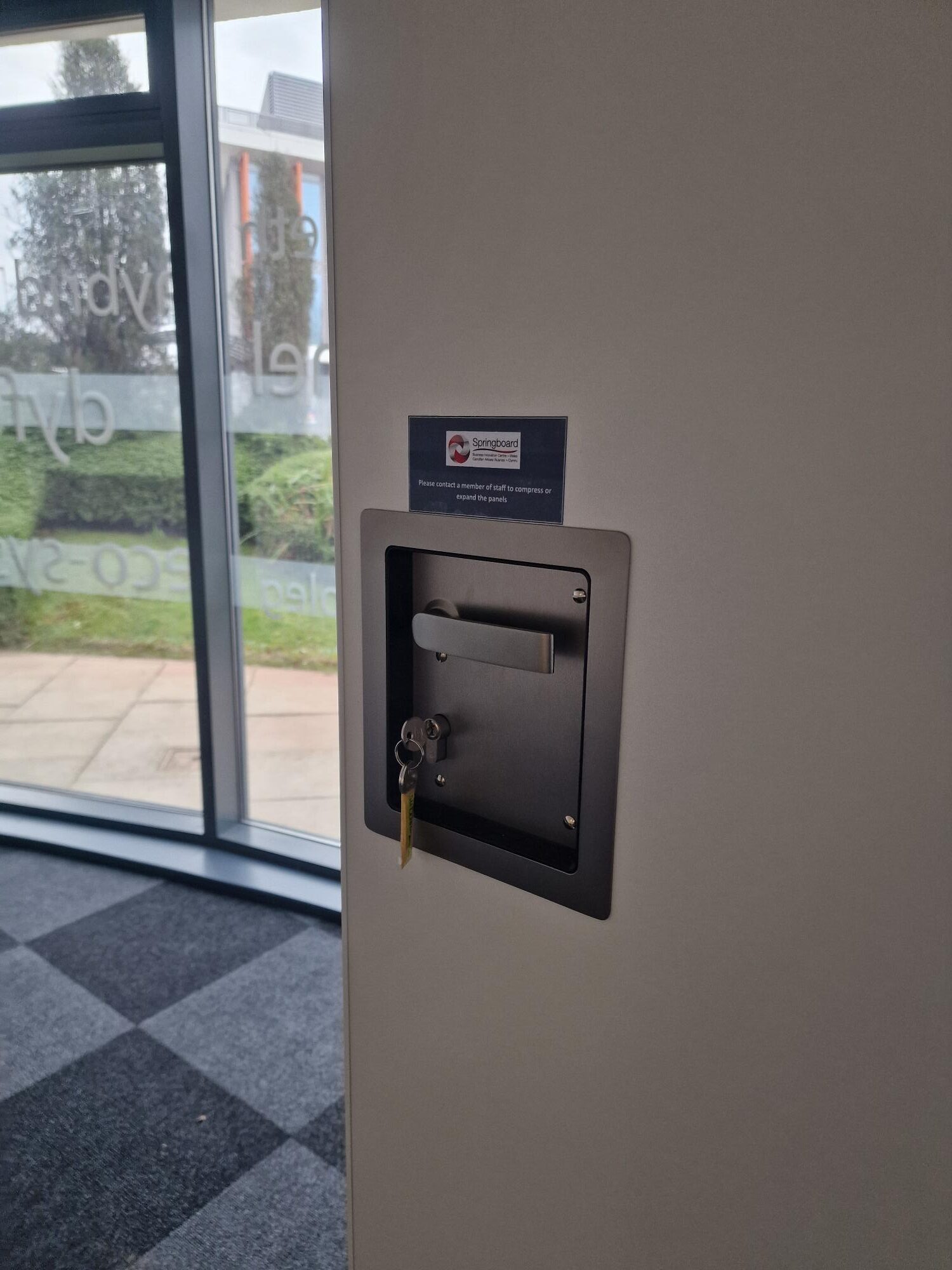

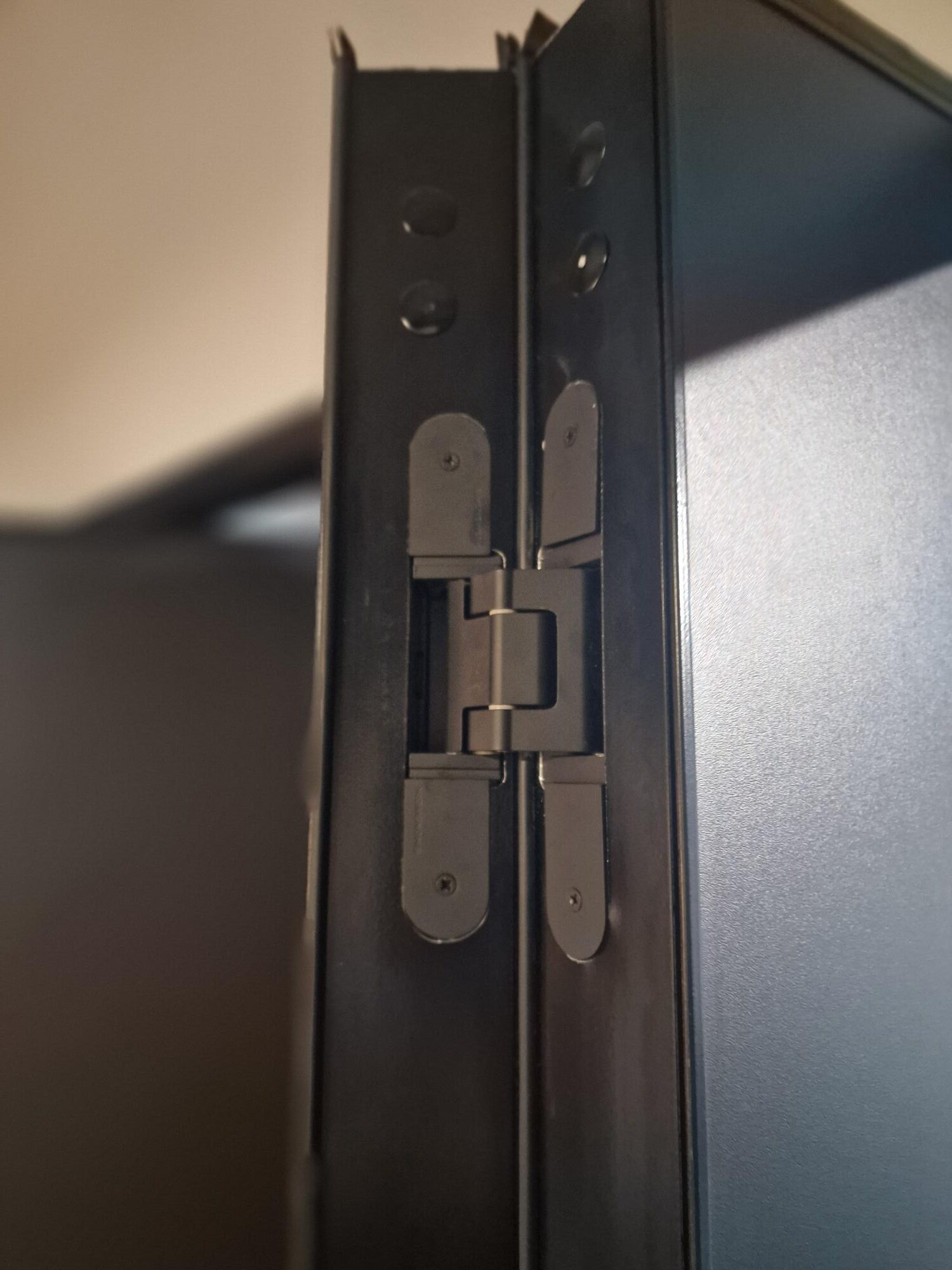

With its concealed hinges, PPC profiles and FSB Handles all as standard, this system really is a market leader

With multiple fixed rubber sweep seals it can offer an acoustic insulation up to 45dB.

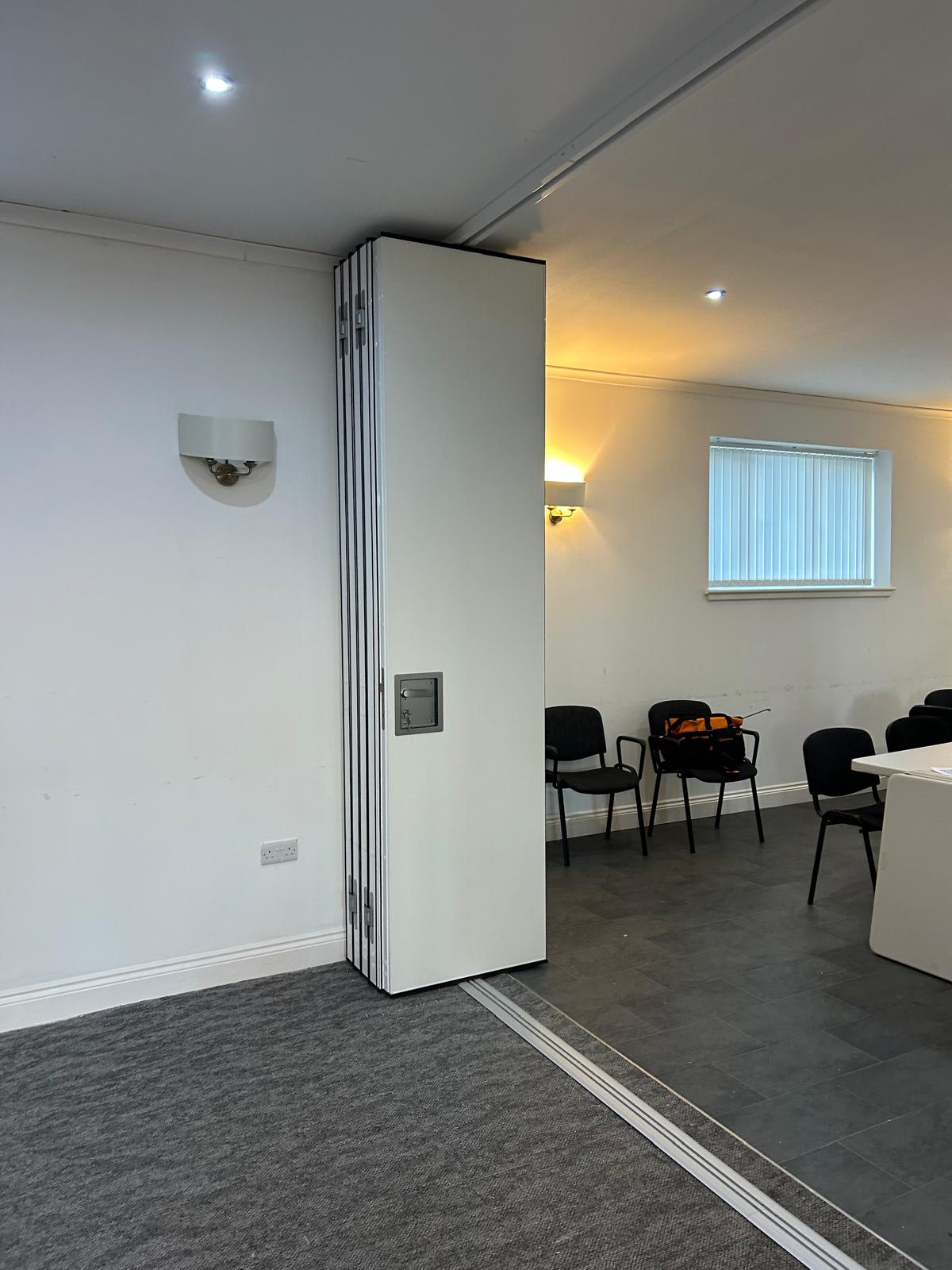

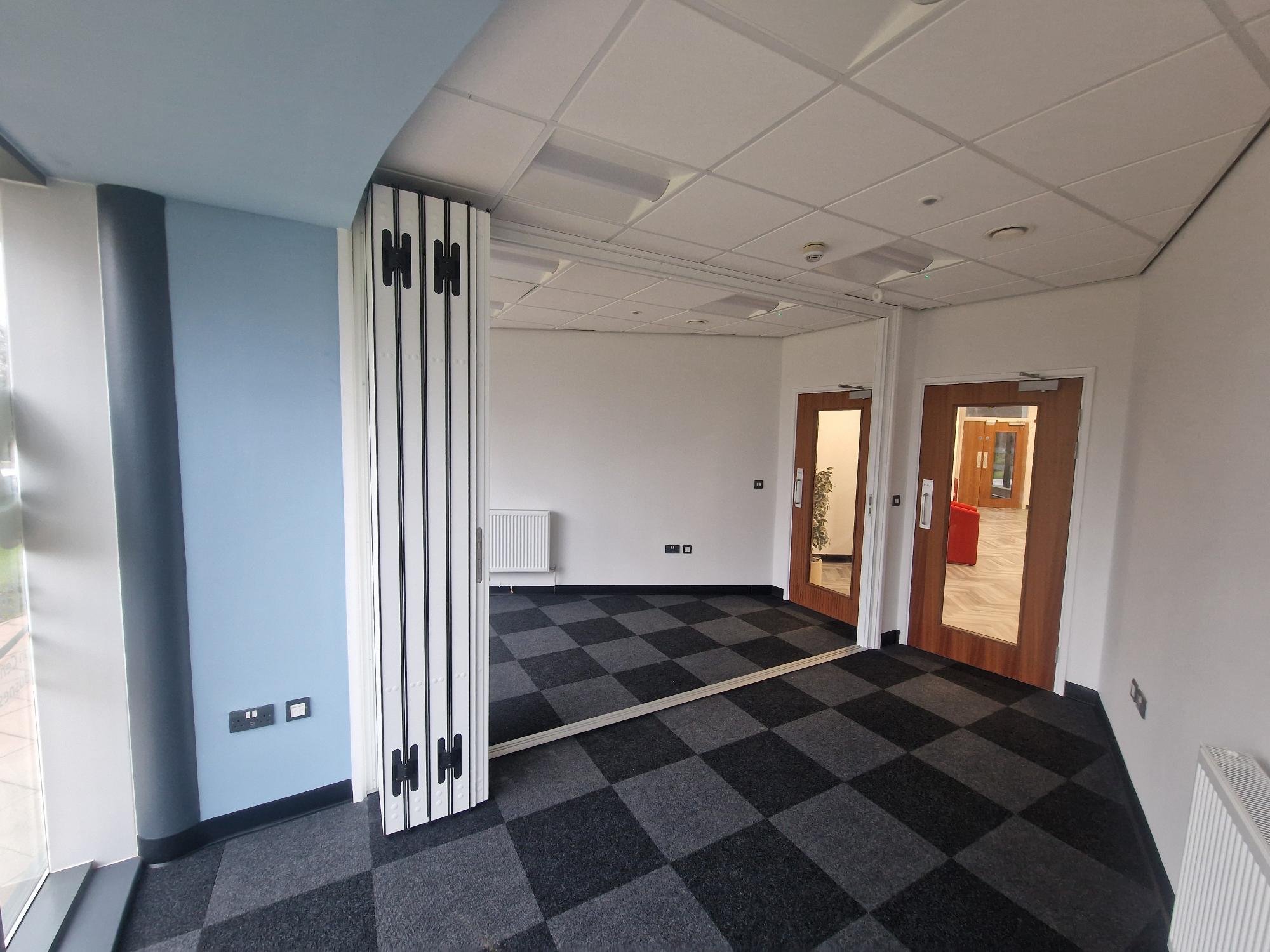

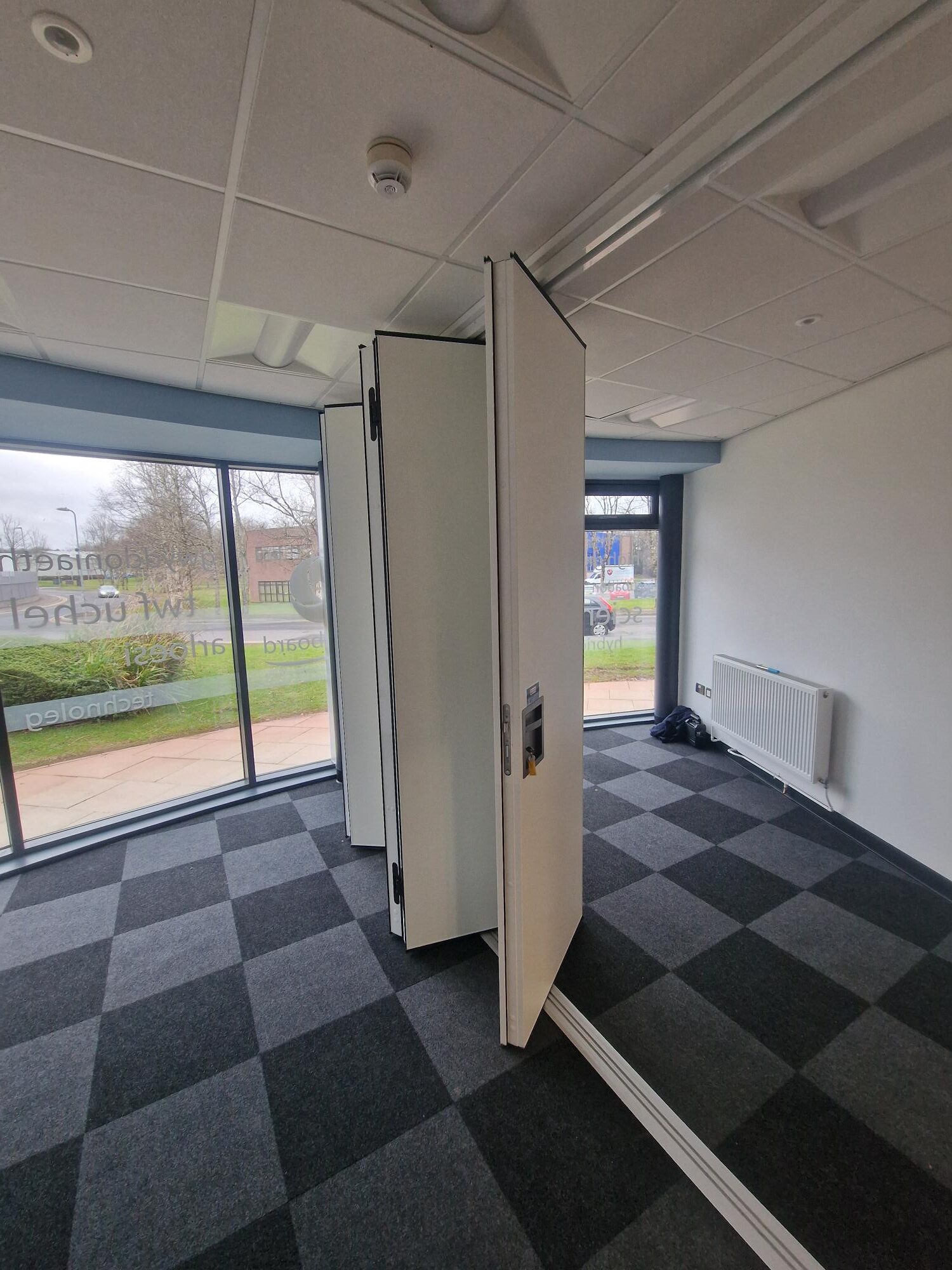

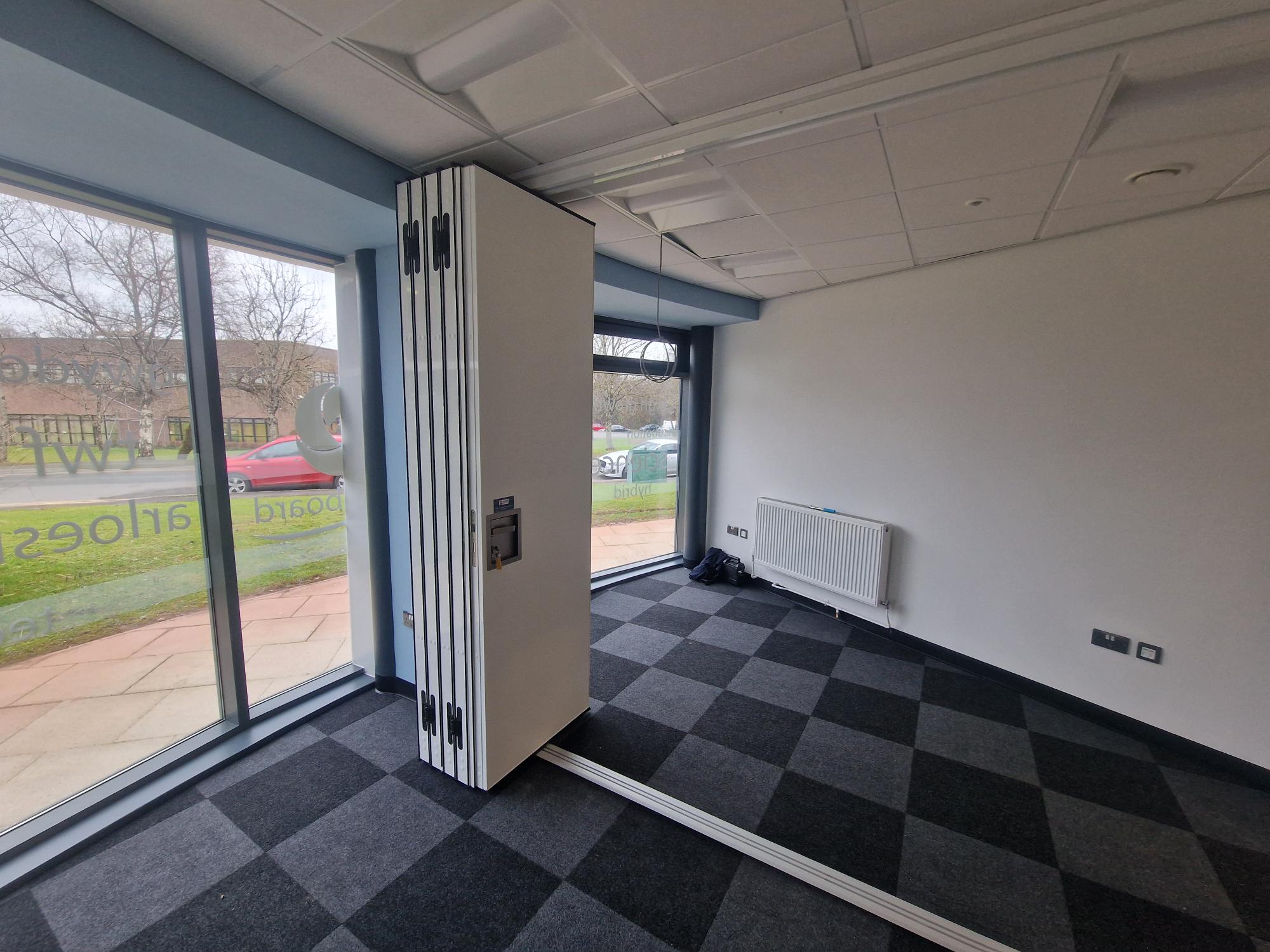

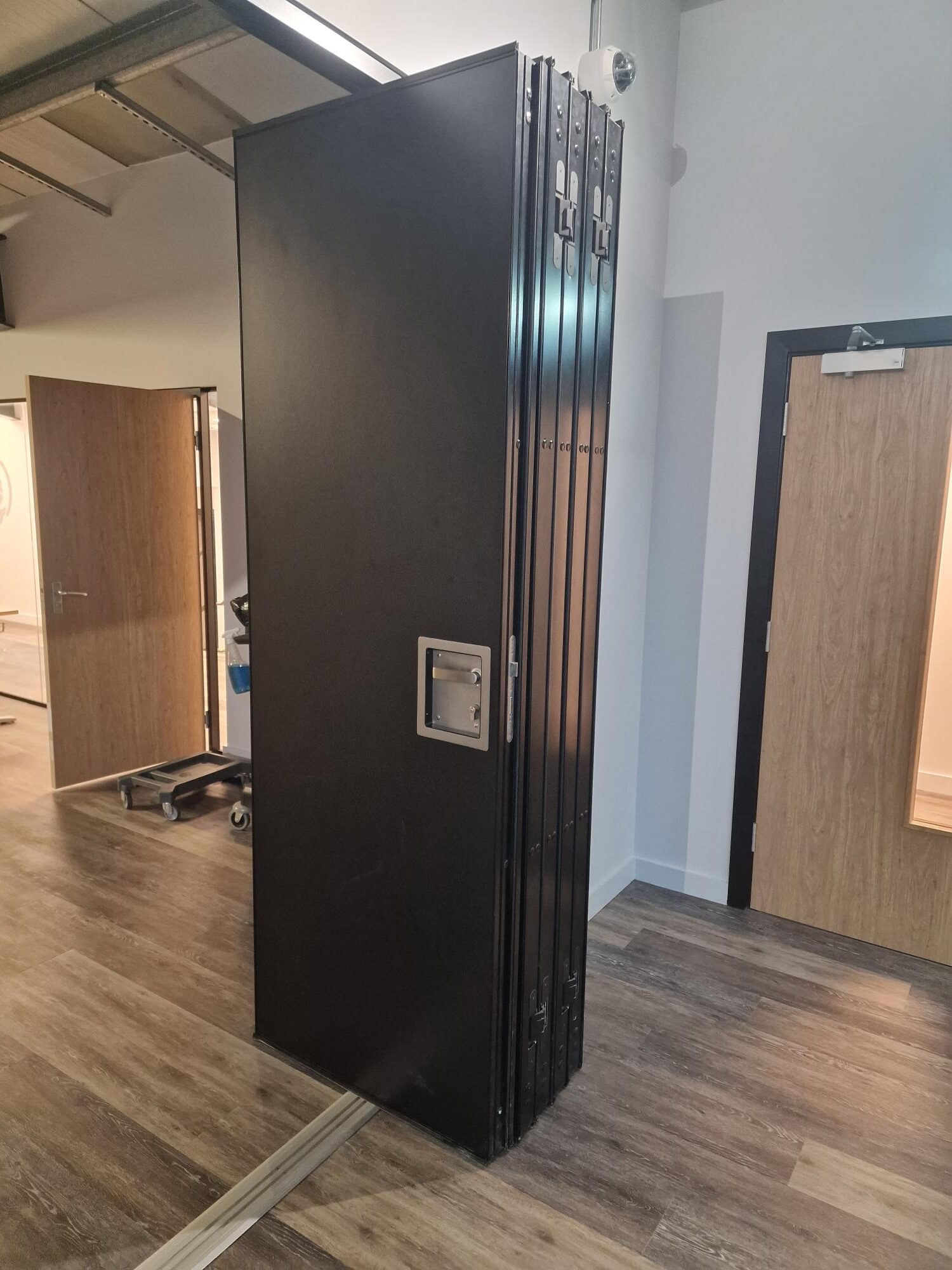

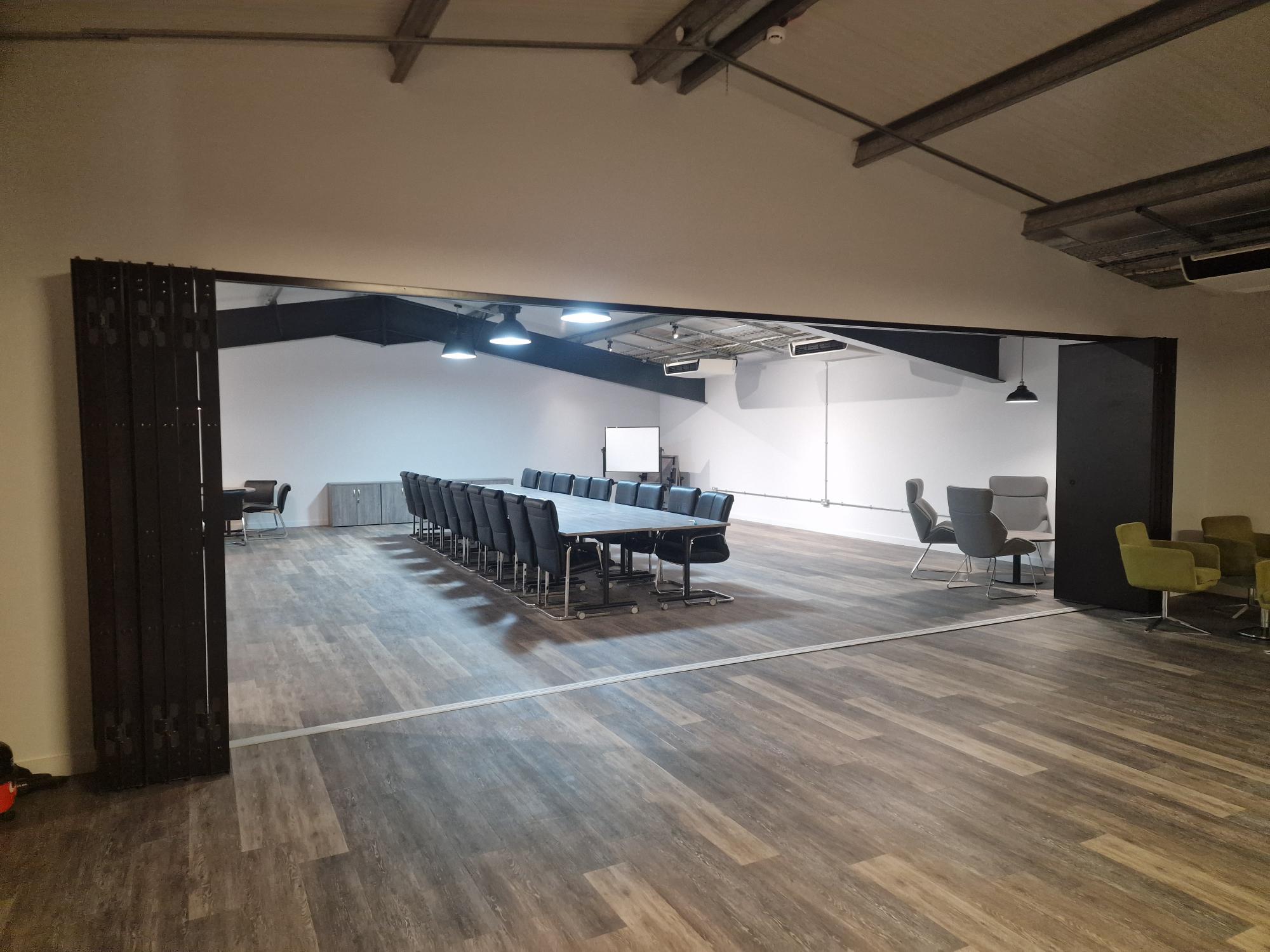

For added flexibility, or when there is no suitable structure to suspend from, the Sigma can be supplied as a bottom rolling option, running along a low profile floor track.

Technical Specs

Acoustic rating from 38-45dB
Applications up to 3600mm high
Top Hung or Bottom Rolling with floor track
Available with virtually any surface finish
Corner and glazed panels for added flexibility
Centre or Endfold configuration

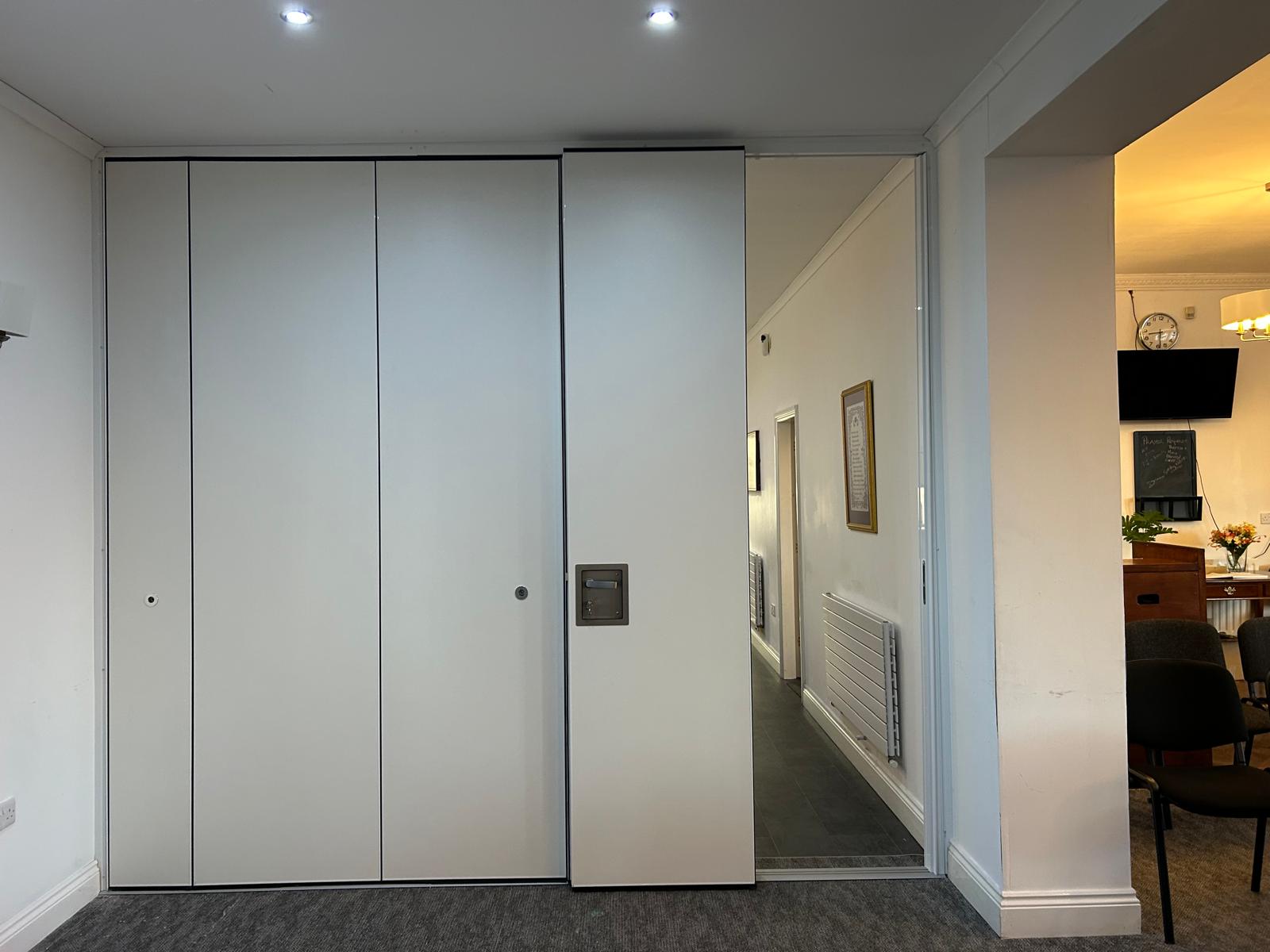

Communicating door panel within as standard
Panel widths from 600mm – 850mm
Panel thickness 82mm
Full maintenance contracts available
Manufactured in the UK

Finishing Options

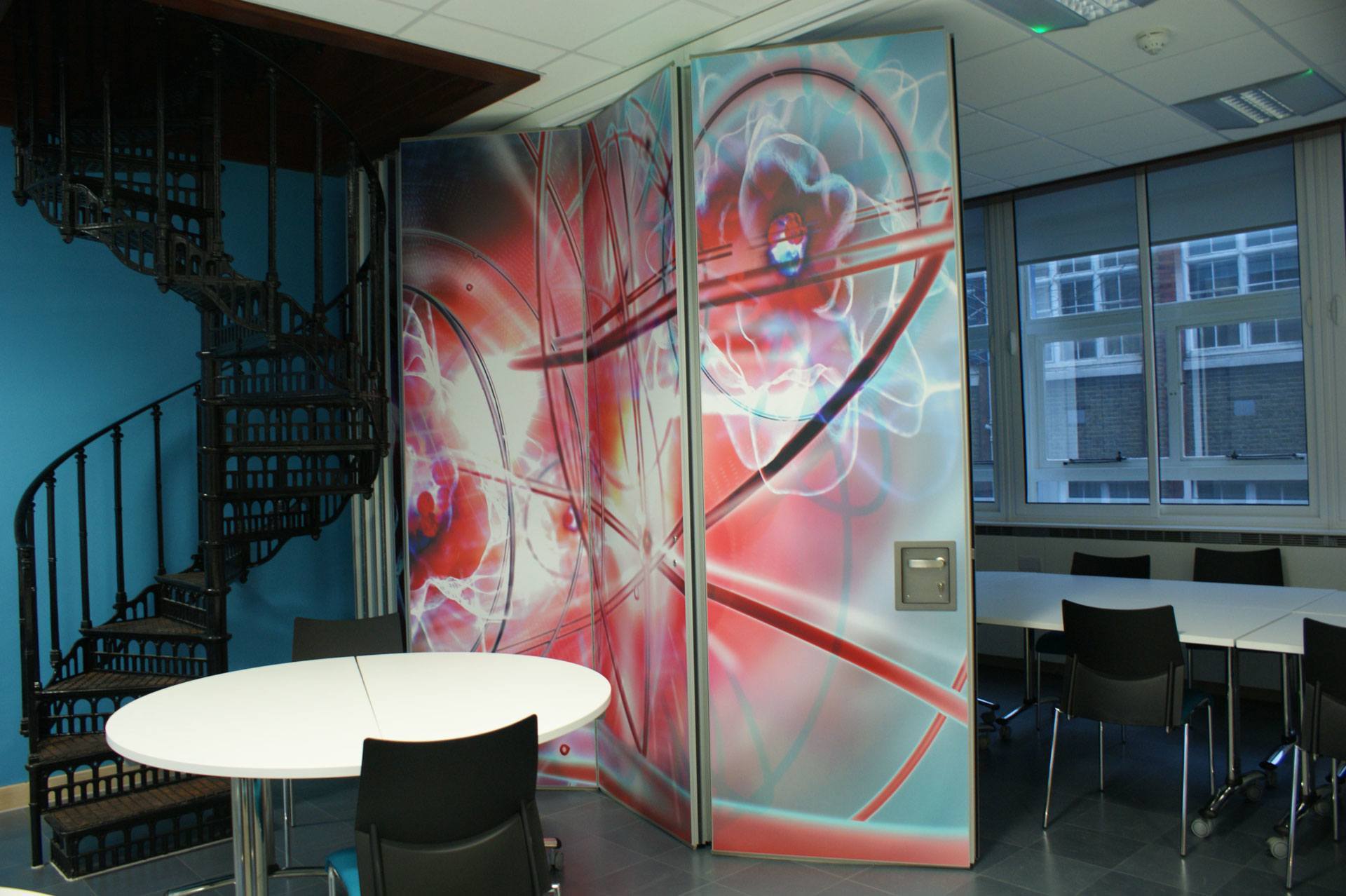

Our wall systems are available in a wide array of surface finishes to suit the design of its surroundings. Plus! Add bespoke surface decals.

Priming Options

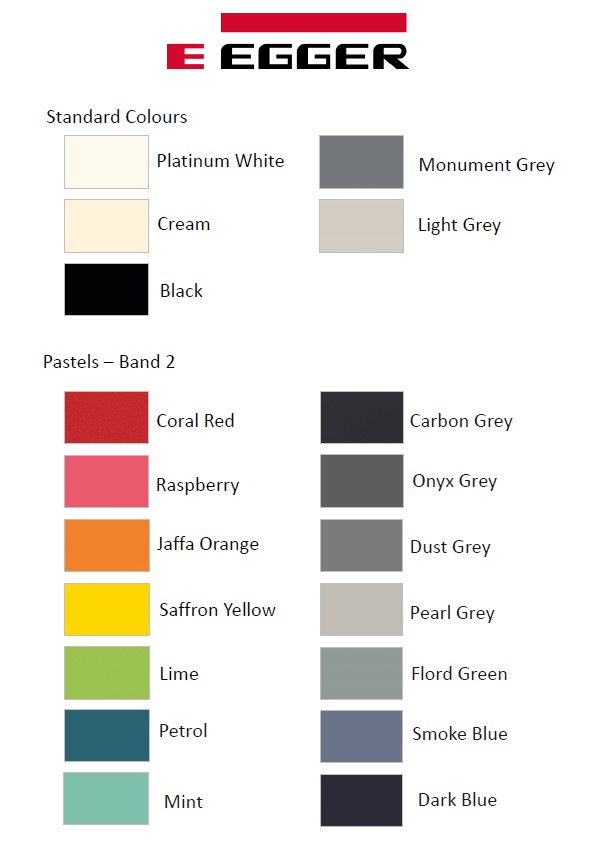

Uni Colours

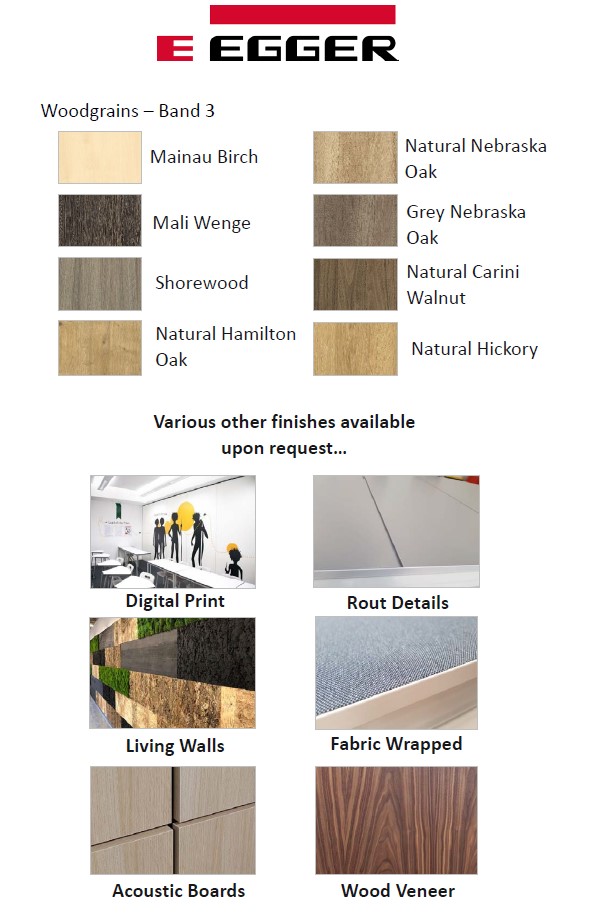

Wood Grain

Stacking Options

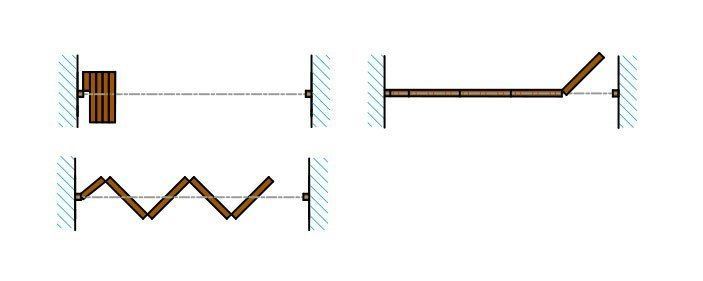

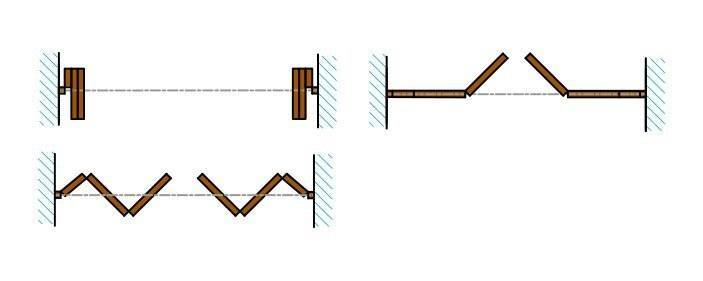

There are 4 common stacking options for the Sigma Range movable wall system as shown below:

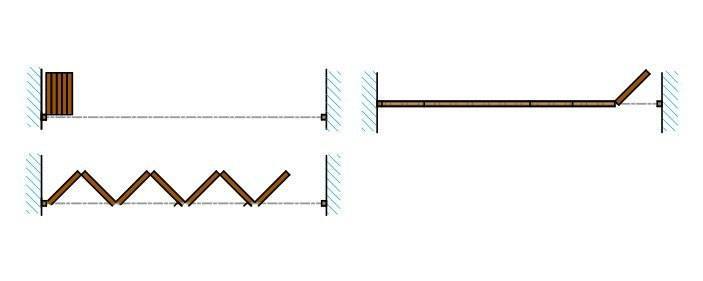

Single Wing – End Folding

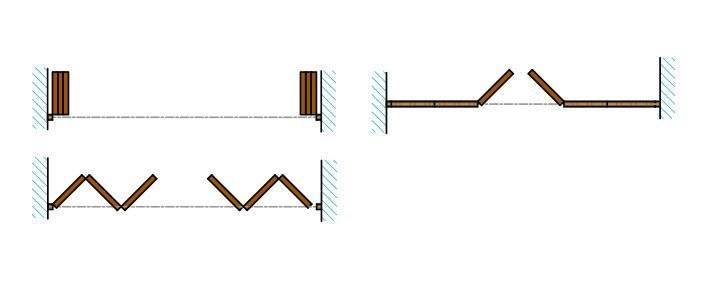

Bi Wing – End Folding

Single Wing – Centre Folding

Bi Wing Centre Folding

Suspension Options

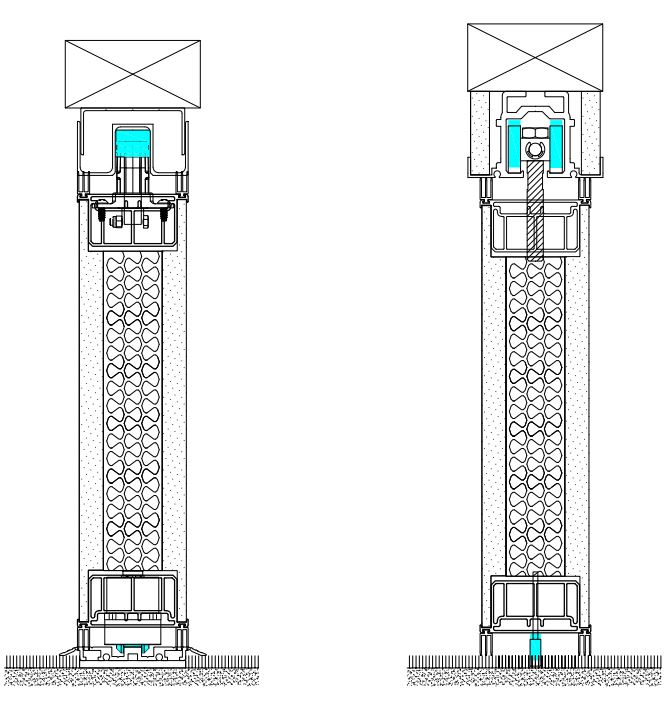

There are 2 suspension options for the Sigma Range:

Top Hung

Bottom Rolling

Downloads

Sigma	PDF	DWG
Bottom Rolling Track
Bottom Rolling Section
Top Hung Detail
Top Hung Detail With Pelmet
Wall & Door Jamb
Panel Connection
Head Fixing
Head Track & Pelmet Detail
Top Hung Head Track
